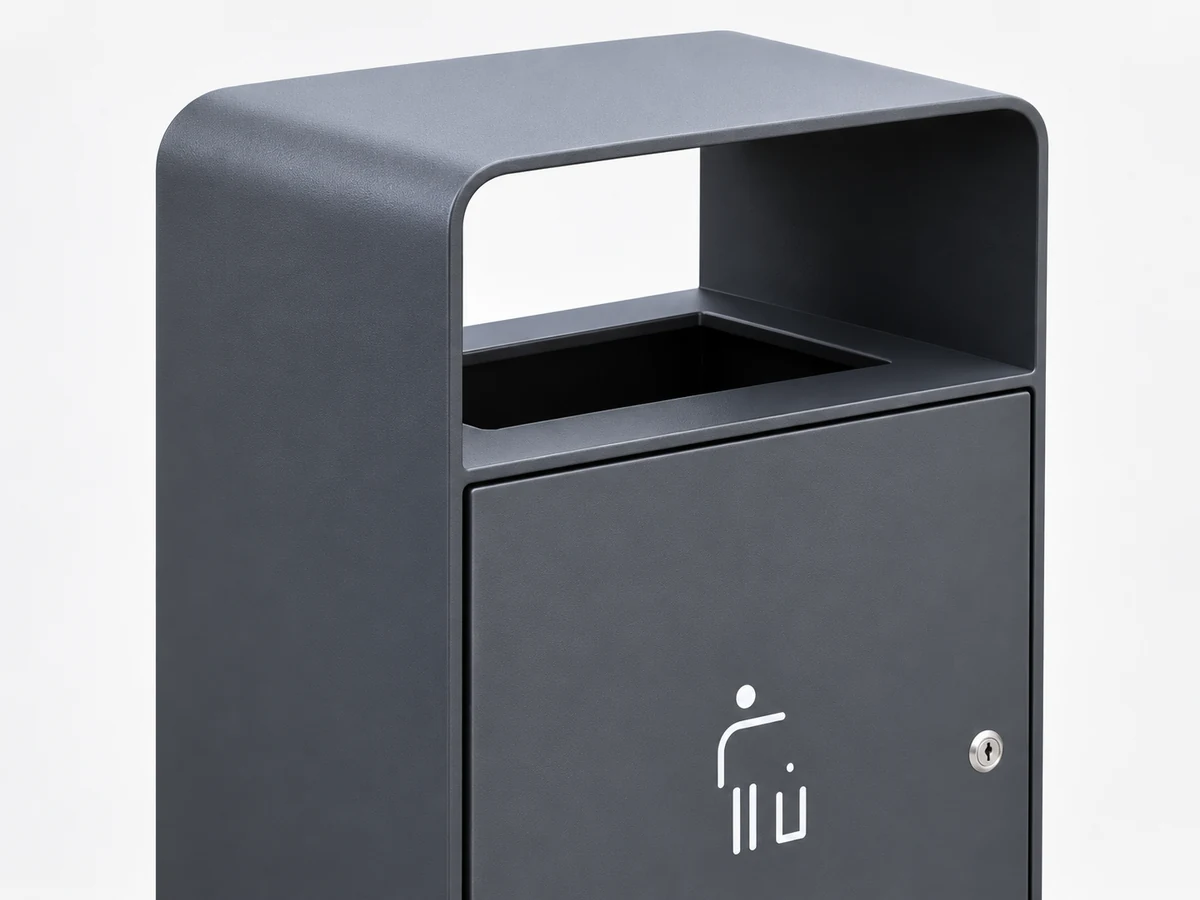

Integrated Curved Top Cover
The curved cover extends above the disposal opening to provide overhead shelter. Users can deposit everyday litter through the opening beneath the cover.

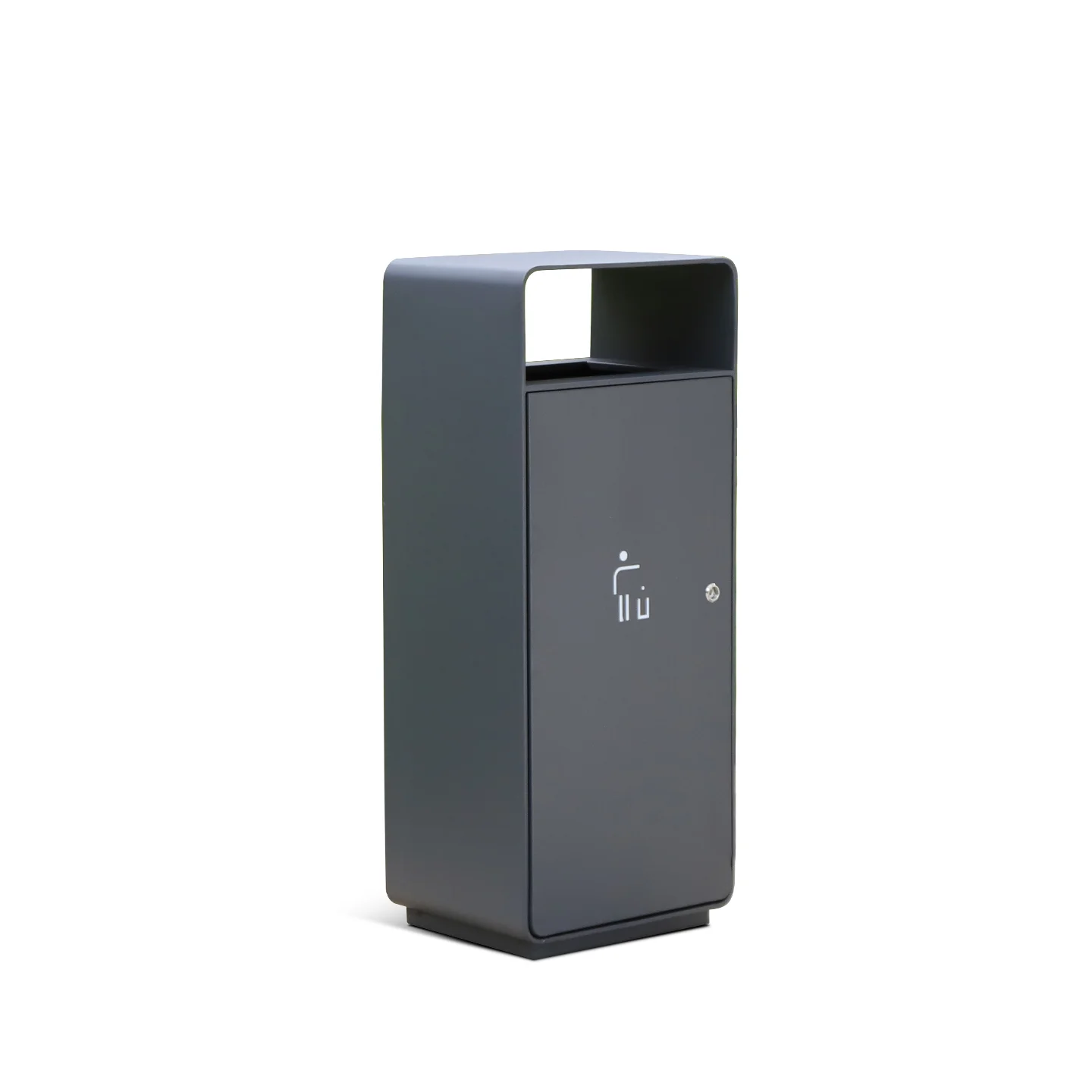

OTB-04 Commercial Outdoor Trash Cans – Single & Dual Options
A simple metal exterior with covered openings, available in 55 L single and 60 L × 2 sorting configurations. The OTB-04 range of commercial outdoor trash cans combines powder-coated galvanized steel with a curved top cover and front-door service access. Choose a single unit for one waste stream or a dual cabinet for two waste categories. Colors, waste labels and logo printing can be specified for project orders.
Model
OTB-04
Dimensions
Single unit: 40 × 30 × 95 cm (L × W × H)

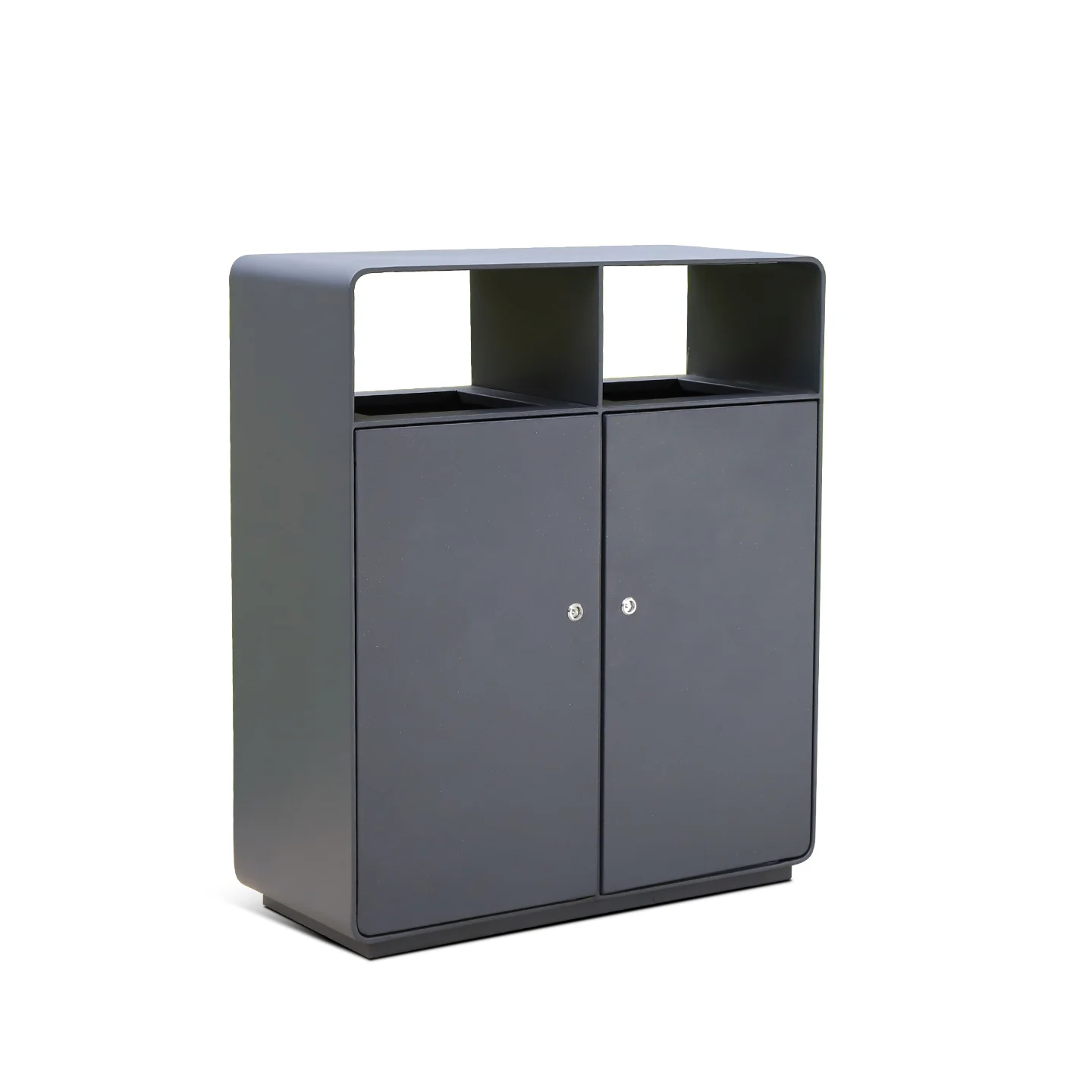

Dual unit: 78 × 35 × 95 cm (L × W × H)
Capacity
Single unit: 55 L
Dual unit: 60 L × 2
Color
Process
Metal cutting, bending, welding, grinding, powder coating and assembly
Material
Powder-coated galvanized steel
Features
Curved top cover; single or dual collection layouts; lockable front service doors; removable metal inner liners; pre-drilled base holes with anchor bolts for ground mounting; custom colors, waste labels and logo printing
Get a Quick Quote
OTB-04 Commercial Outdoor Trash Cans at a Glance
Match different collection points while maintaining a consistent cabinet style.
The single unit serves locations collecting one waste category. Where sorting is required, the dual cabinet places two collection compartments side by side, each with its own opening and front service door.
Both versions stand 95 cm high and share the same plain metal styling. This allows a project to combine single and dual collection points according to available space and sorting requirements.
OTB-04 Outdoor Litter Bins for Coordinated Sites
A plain metal finish, separate sorting compartments and matching cabinet heights.
01
A Clean Metal Exterior

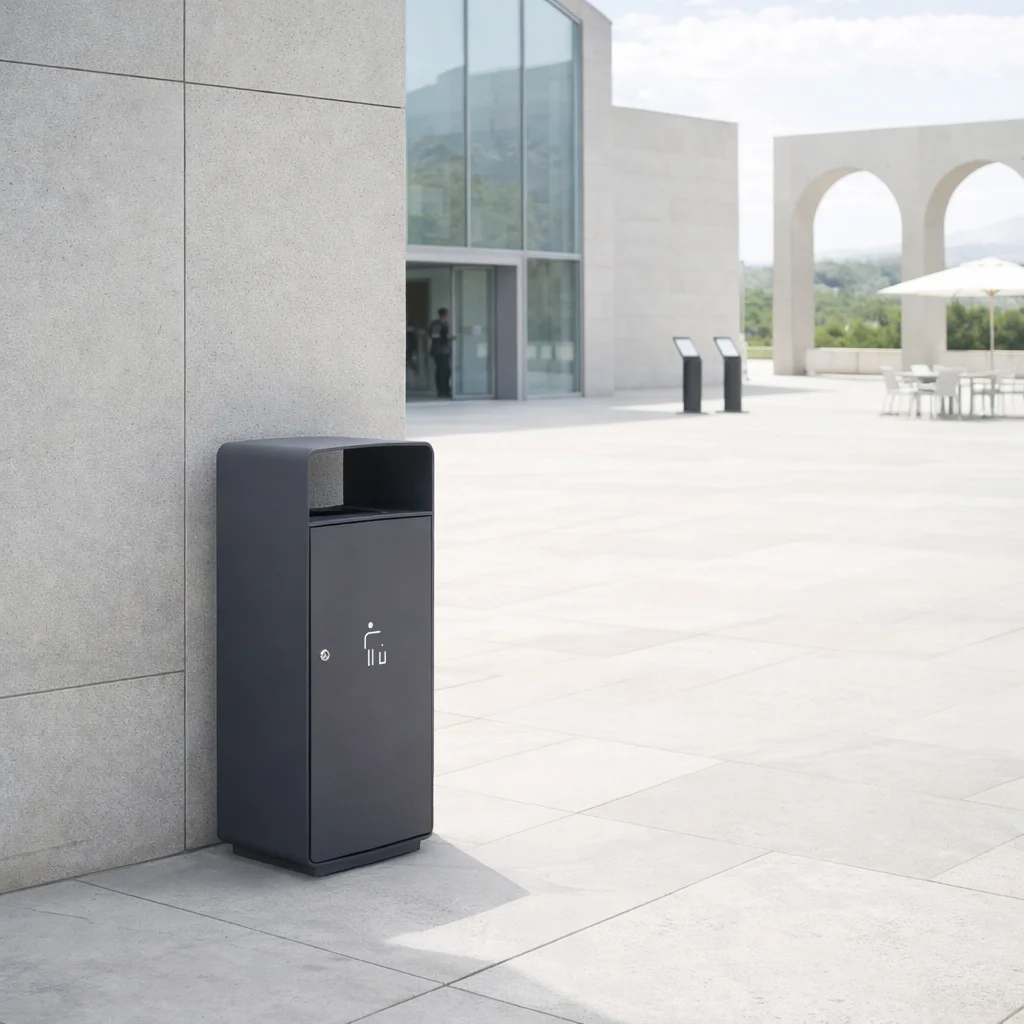

Solid metal doors and a curved top give the cabinet a simple, understated appearance. The powder-coated galvanized steel body suits projects seeking a consistent metal finish across streets, plazas and building entrances.
02

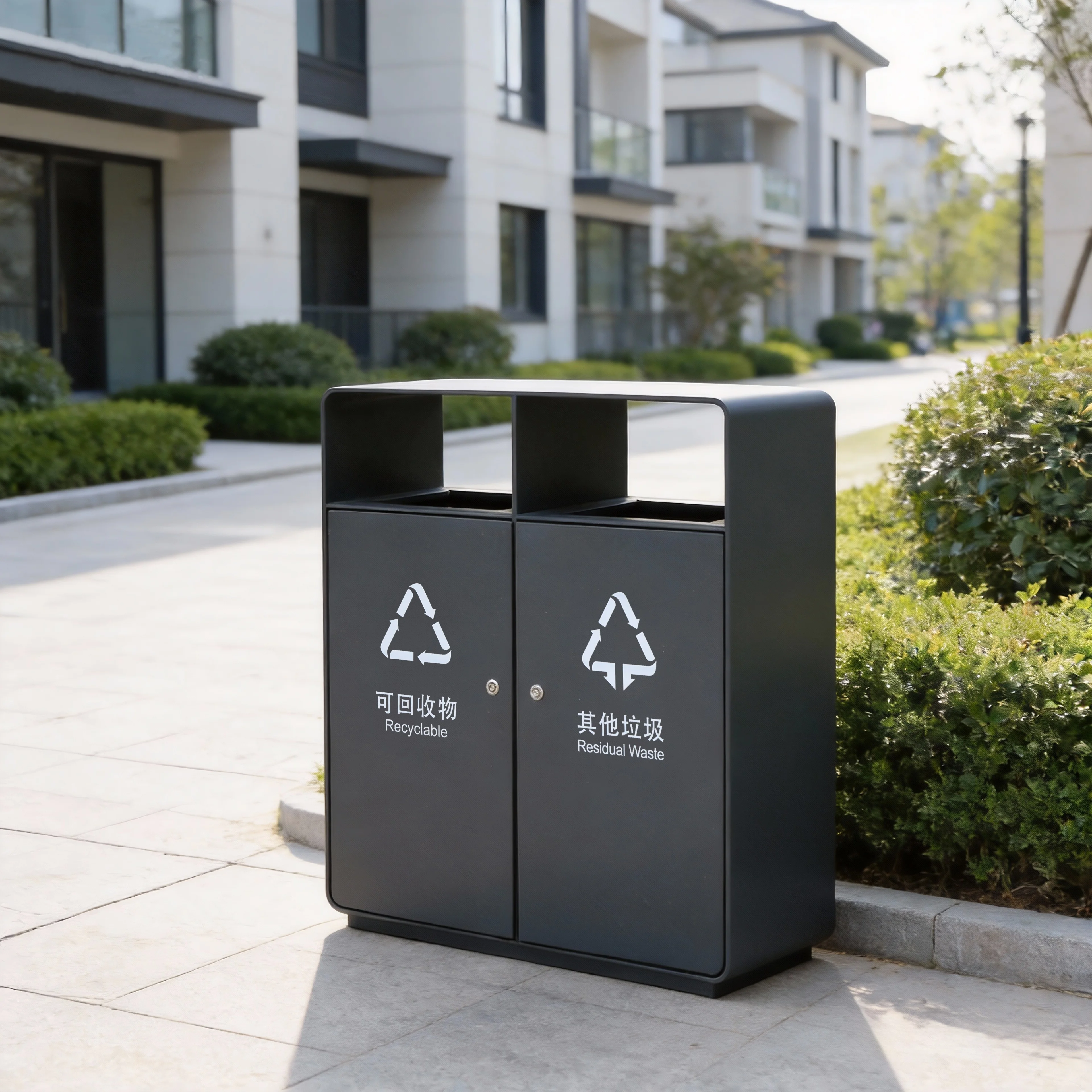

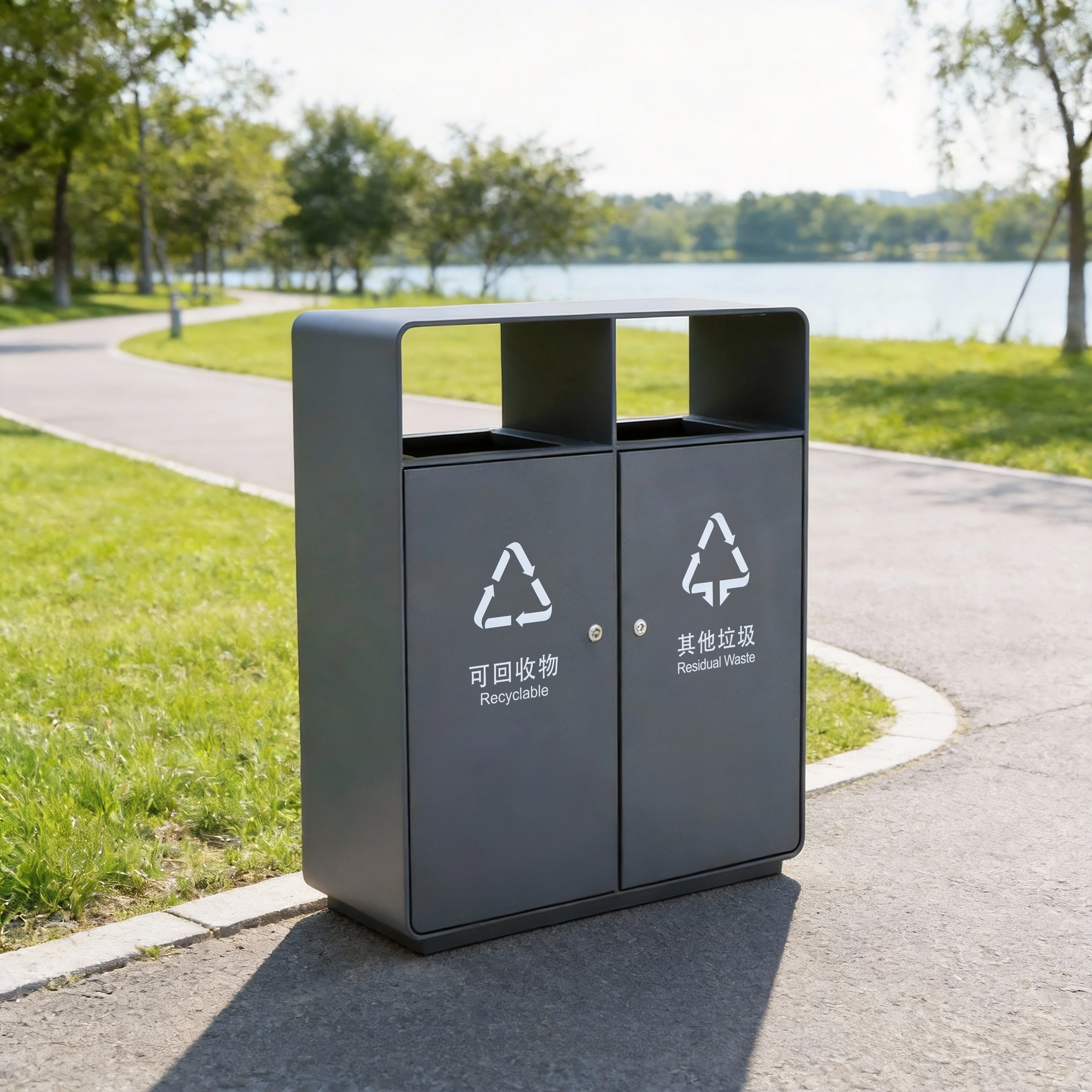

Two 60 L Compartments for Sorting
The dual version provides 60 L for each waste category, with separate openings and collection compartments. Specify labels that match the site’s collection system so users can identify where each type of waste belongs.
03
Matching Single and Dual Units
Use the narrower single cabinet where one waste stream is collected and the dual cabinet where separation is needed. Their shared height and exterior design help coordinate collection points across the same property.
OTB-04 Outdoor Metal Trash Bins with Front Service Access
Four details covering disposal, emptying, cleaning and ground mounting.

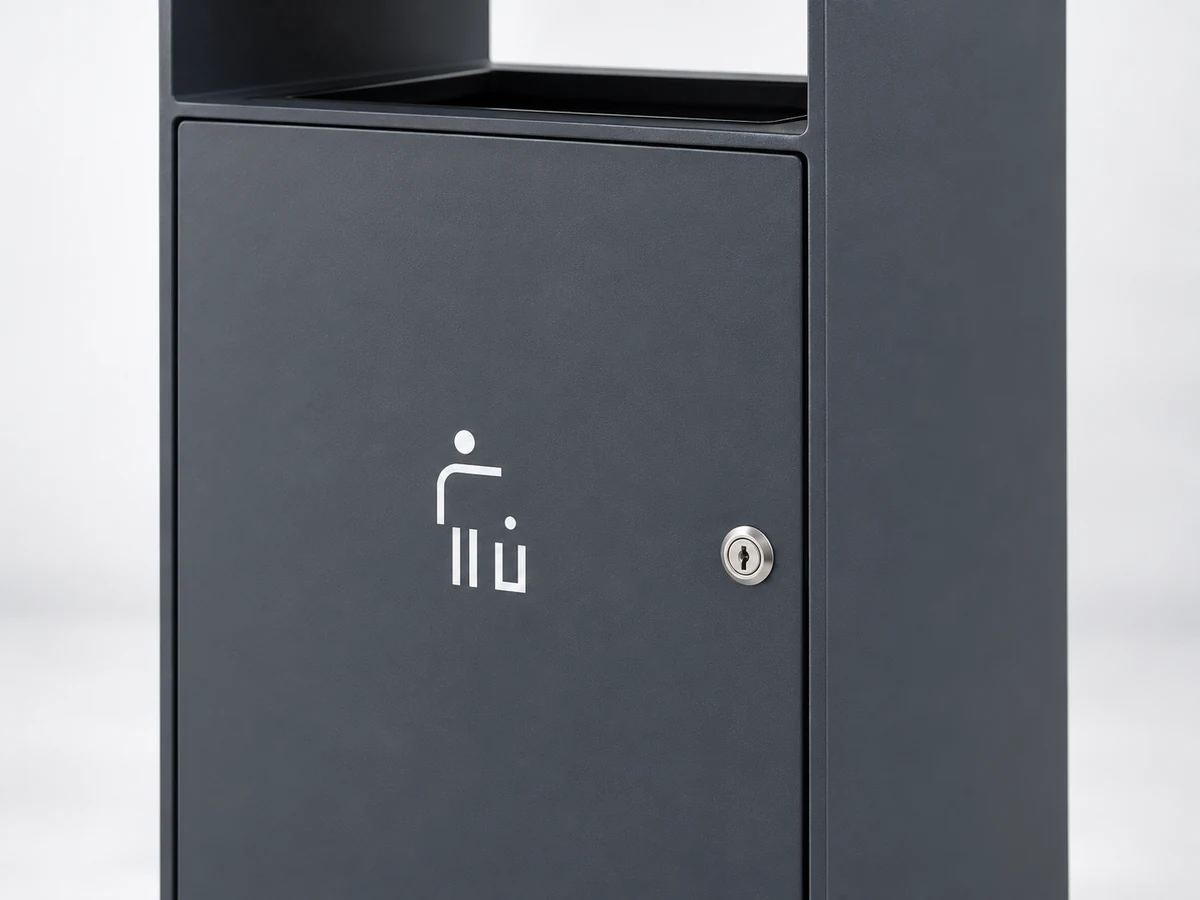

Lockable Front Service Doors
The front doors provide access to the collection compartments. They can be locked between servicing visits to restrict access to the interior.

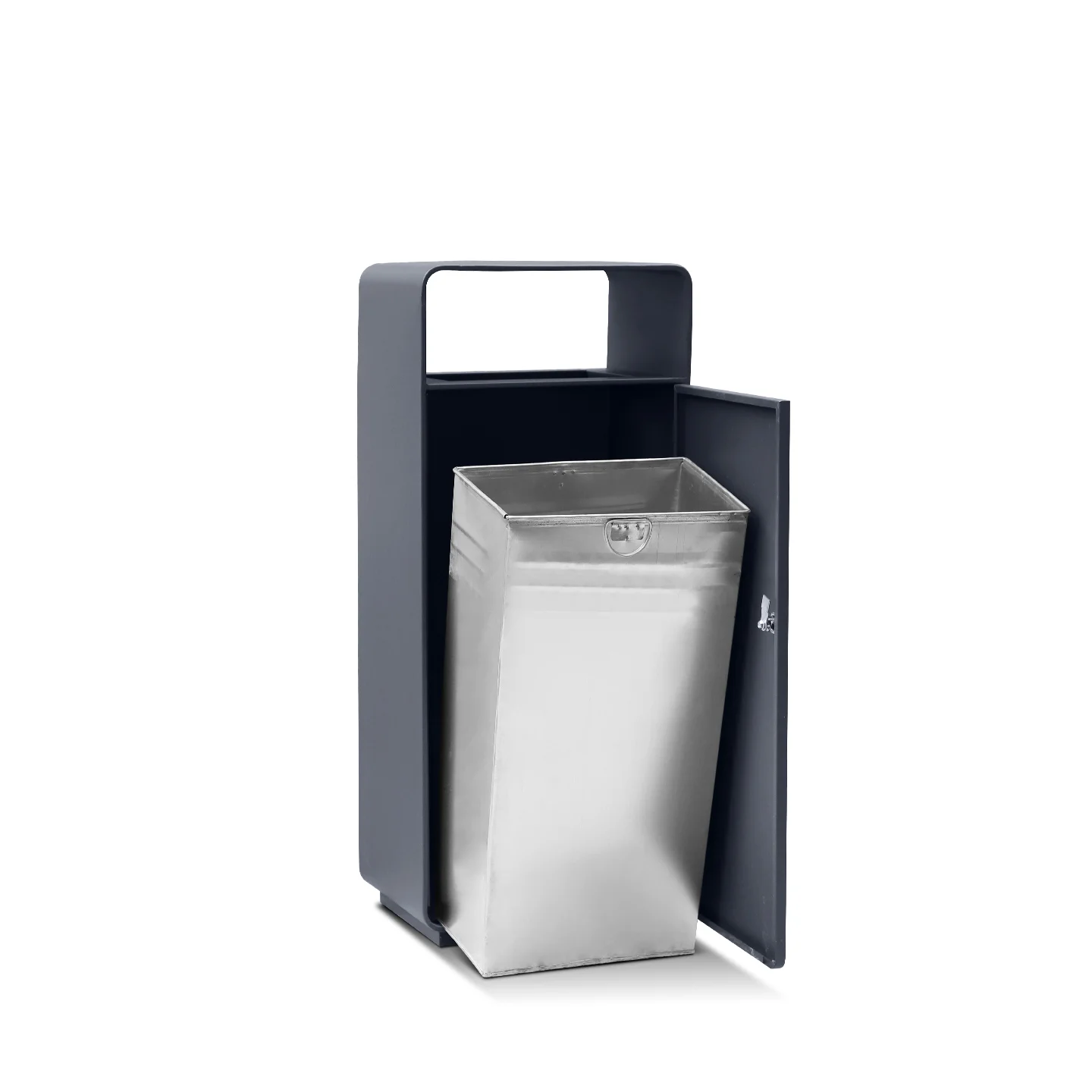

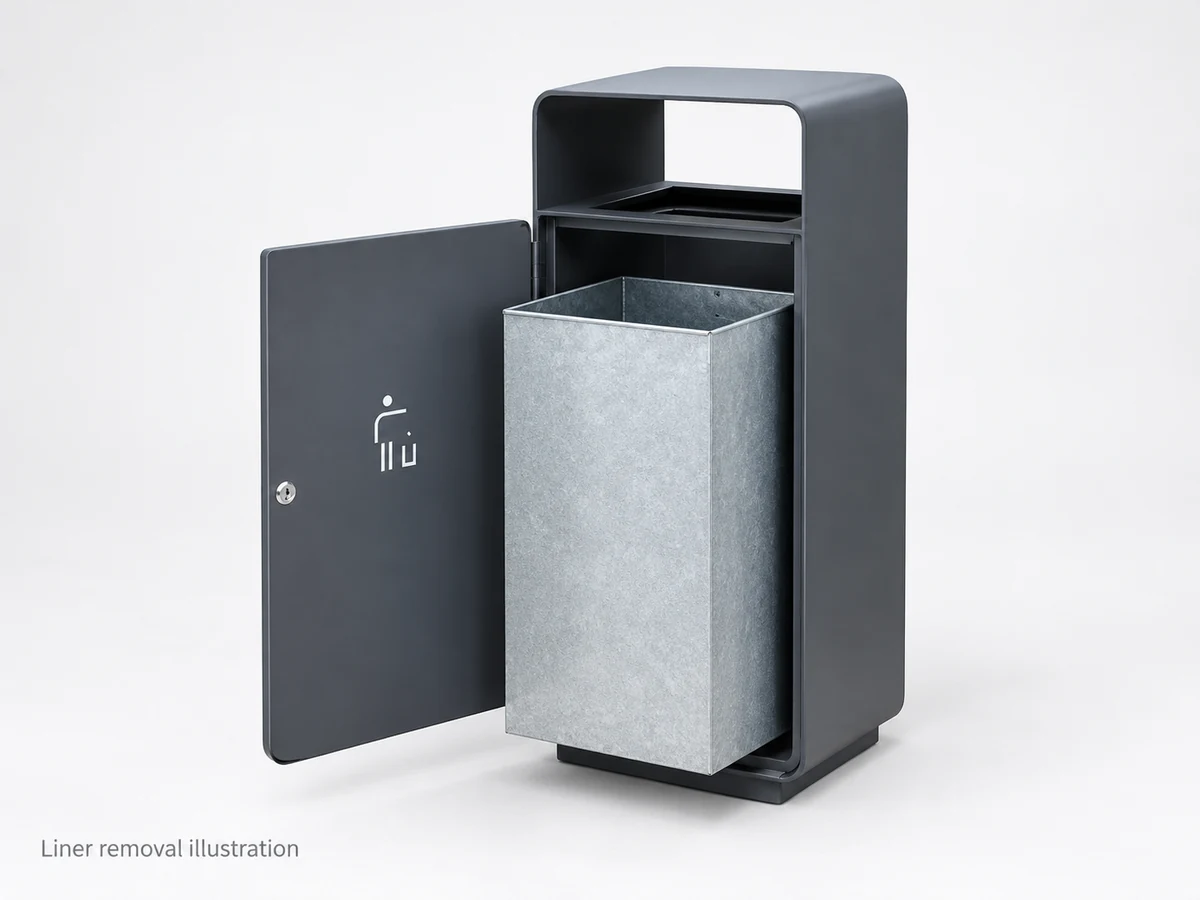

Removable Metal Inner Liners
The liners can be taken out for emptying and cleaning. Maintenance staff can service the waste containers while the outer cabinet remains fixed in position.

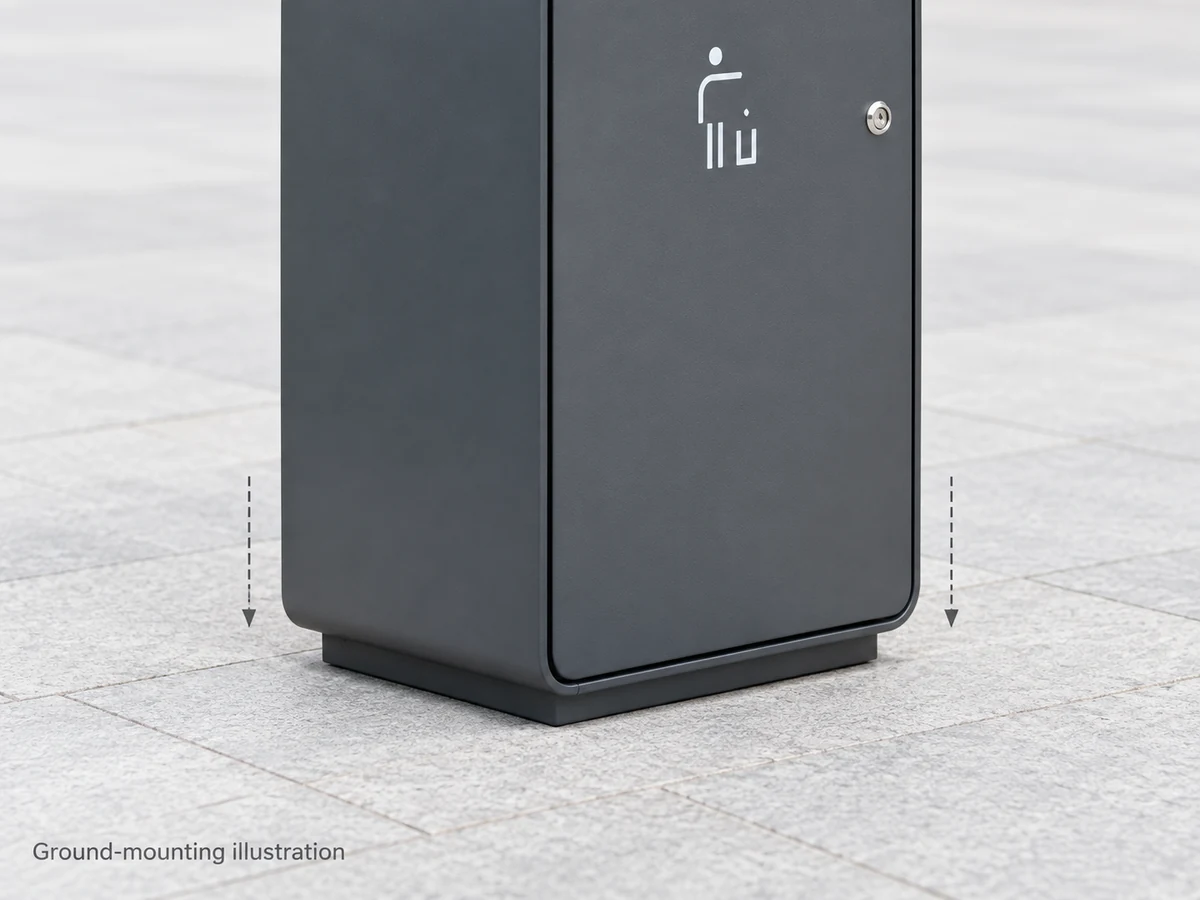

Pre-Drilled Base Holes
Base holes and anchor bolts allow the cabinet to be secured to a suitable installation surface. Confirm the fixing arrangement for the selected location before installation.
Ready to Specify the OTB-04
for Your Project?
Share your single or dual configuration, quantity, installation location, color and labeling requirements with LVEN.

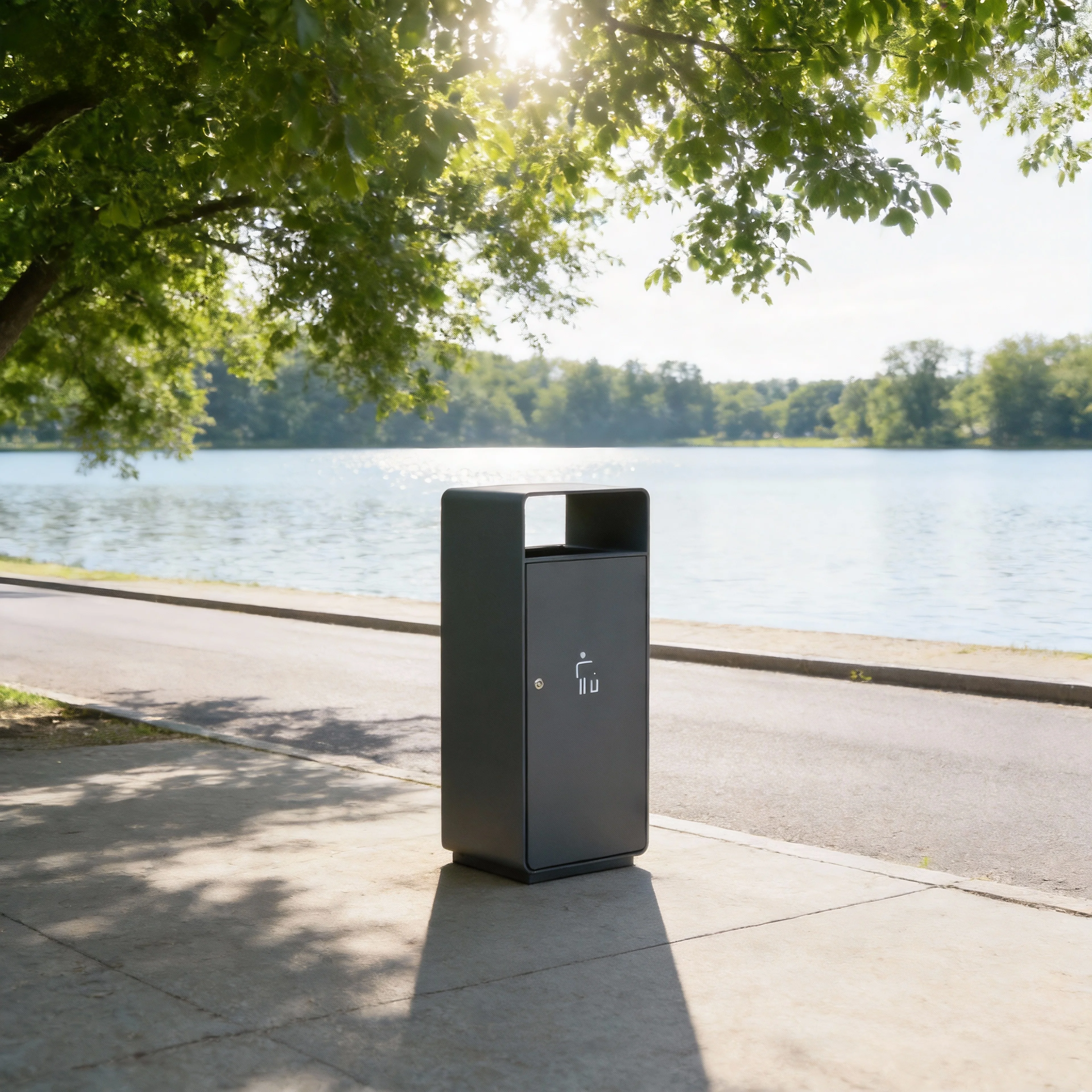

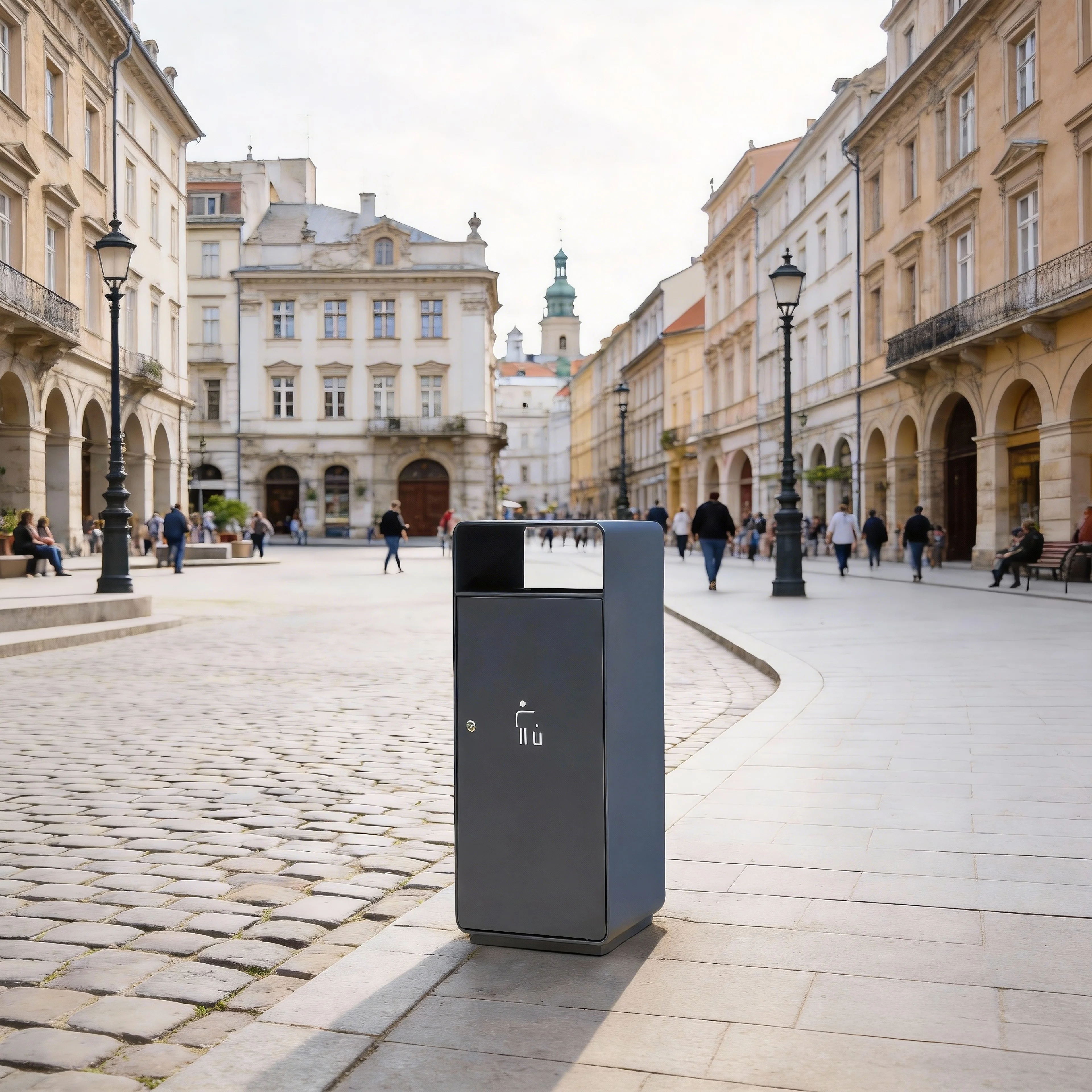

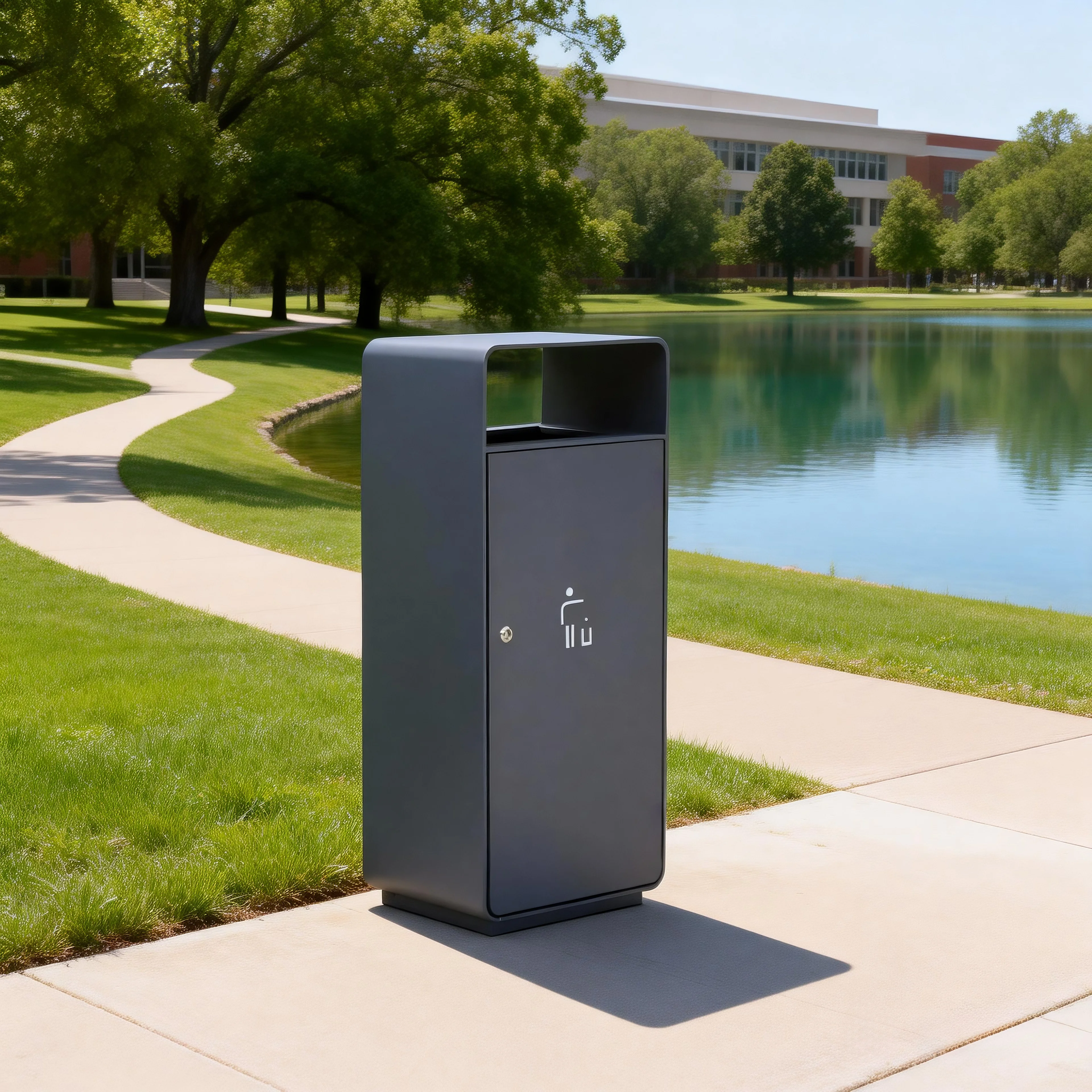

OTB-04 Outdoor Litter Bins for Parks, Streets and Plazas
Choose locations according to pedestrian activity, waste categories and collection access.
FAQs About OTB-04 Commercial Outdoor Trash Cans
Answers about capacity, the covered opening, servicing and project orders.
01 How Do I Choose Between the Single and Dual Versions?
Choose the 55 L single unit for one waste category. The dual version provides two separate 60 L compartments for two categories.
The specification “60 L × 2” means 60 L per compartment. Assess the waste volume and collection frequency of each category separately when choosing the layout.
02 Does the Curved Cover Fully Enclose the Bin?
No. The cover provides overhead shelter, while the disposal opening remains open for everyday use. Consider the site’s exposure to wind and rain when selecting the installation position.
03 Can the Inner Liners Be Removed for Cleaning?
Yes. Open the front service door to access and remove the metal liner for emptying and cleaning. The outer cabinet can remain fixed to the ground during servicing.
04 How Much Space Should Be Allowed for Installation?
The single cabinet has a 40 × 30 cm footprint; the dual cabinet measures 78 × 35 cm. Both are 95 cm high.
Allow additional space in front for opening the doors and removing the liners. Confirm the ground surface and anchor arrangement before installation.
05 Can LVEN Supply Custom Trash Bins with Our Labels and Logo?
Yes. LVEN can supply custom logo trash cans with project-specific body colors and waste labels. Provide the selected configuration, quantity, color reference, label wording and logo artwork.
Customization methods, minimum order quantity and lead time are confirmed for each order.
